RF Filters are designed and manufactured to meet customer-specific requirements and applications. Below is a snapshot of our previous designs. We encourage our customers to provide exact specifications so that we can custom-tailor a solution that best fits the needs of their project.
| Model Number | Frequency Cutoff | Bandwidth | Insertion Loss | Rejection | Package Size |
|---|---|---|---|---|---|
| HPF-95-3515-L9 | 95 MHz | 3515 MHz | <1.0dB @ fo | >35dB @ 50-81 MHz | 0.50”x 0.70”x 2.00” |
| HPF-150-4000-L11 | 150 MHz | 3850 MHz | <1.0 dB @ fo | >50dB @ 107 MHz | |
| HPF-190-3420-L9 | 190 MHz | 3420 MHz | <1.0dB @ fo | >35dB @ 50-160 MHz | 0.50”x 0.70”x 2.00” |
| HPF-200-2000-L14 | 200 MHz | 1800 MHz | <1.9dB @ fo | >45dB @ DC-160 MHz | |
| HPF-700-5000-L9 | 700 MHz | 4300 MHz | <1.0dB @ fo | >50dB @ DC-400 MHz | 0.50”x 0.70”x 2.00” |
| HPF-810-2800-L9 | 810 MHz | 2800 MHz | <1.0dB @ fo | >35dB @ 50-690 MHz | 0.50”x 0.70”x 2.00” |
| HPF-1000-18000-SS9 | 1000 MHz | 17000 MHz | <1.4dB over passband | >40dB @ DC-900 MHz | |
| HPF-1250-2750-L9 | 1250 MHz | 2750 MHz | <1.0dB @ fo | 9 Pole Response | 0.56”x 0.80”x 1.70” |
| HPF-1550-4000-L9 | 1550 MHz | 1000 MHz | <1.0dB @ fo | >50dB @ 900-1450 MHz | |
| 2000 MHz | 16000 MHz | <1.5dB over PB | >60dB @ 1800 MHz | ||
| HPF-2710-3500-SS11 | 2710 MHz | 700 MHz | <2.5dB @ fo | >60 dB @ 2000 MHz | |
| 3000 MHz | 15000 MHz | <1.0dB over PB | >50dB @ 100-2600 MHz | 0.40"x 0.80"x 1.20" | |
| HPF-3200-3100-L9e | 3200 MHz | 3100 MHz | <2.0dB @ Fc | >30dB @ 3100 MHz | |

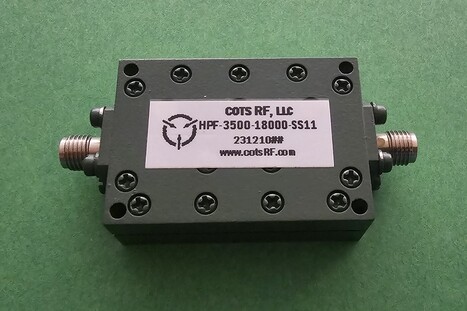

| 3500 MHz | 16500 MHz | <1.0dB over PB | >45dB @ 50-3200 MHz | 0.56"x 0.80"x 1.20" | |
| HPF-3590-3320-L9 | 3590 MHz | 3320 MHz | 1.0 dB @ fo. | >35dB @ 50-260 MHz | 0.50”x 0.70”x 2.00” |
| 4000 MHz | 16000 MHz | <1.0dB @ fo | >40dB @ 50-3500 MHz | 0.40"x 0.80"x 1.20" | |
| HPF-7000-25000-SS11 | 7000 MHz | 18000 MHz | <1.0dB @ fo | >60dB @ DC-6300 MHz | 0.40"x 0.80"x 1.20" |
